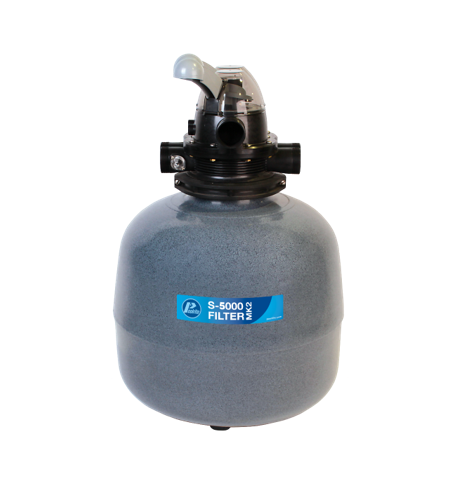

Poolrite S Series Media Filters
High-Performance Media Filtration with V2000 Multiport Valve
The Poolrite S Series Media Filters are engineered to deliver dependable, high-rate filtration for swimming pools and spas, combining robust filter construction, Poolrite's specialised underdrain technology and the Poolrite V2000 Multiport Valve into one integrated filtration system.
Available in S-5000, S-6000 and S-8000 models, the range provides different filtration capacities to suit a variety of pool installations. Each system is designed around efficient water movement through a deep media bed, helping capture suspended contaminants while providing straightforward operation and effective backwashing.
Advanced Poolrite Media Filtration
During normal filtration, the pool pump delivers water under pressure to the V2000 Multiport Valve, which directs it into the top of the filter through the overdrain diffuser. Water then travels down through the filtration media before entering the underdrain and returning to the pool.
As suspended contaminants pass through the media bed, larger particles are captured and retained. Poolrite's filtration process also describes how some smaller particles can acquire an electrostatic charge as they pass through the media, encouraging them to cluster together so they can subsequently be captured by the filter bed.
Durable Engineering Polymer Construction
Poolrite S Series filter tanks are manufactured from an advanced Engineering Polymer, providing a strong and weather-resistant housing designed for long-term pool equipment installations.
Key Features
- High-rate swimming pool and spa media filtration
- Available in S-5000, S-6000 and S-8000 configurations
- Advanced Engineering Polymer filter tank construction
- Poolrite micro-slot underdrain system
- Exclusive folding lateral arm technology
- Designed for use with a deep, dual-media Diamond Kleen filter bed
- M10 fine and M20 coarse Diamond Kleen media configuration
- Longer filter cycles and efficient backwashing
- Supplied with the Poolrite V2000 Multiport Valve
- Six valve functions — Filter, Backwash, Rinse, Waste, Recirculate and Closed
- Built-in V2000 sight glass for monitoring backwash and rinse cycles
- Designed for reduced water-flow restriction and quieter valve operation
- Maximum flow rates from 13,200 to 27,000 L/hr
- Weather-resistant equipment construction
- Designed for straightforward operation and ongoing maintenance
S Series Media Filter Range

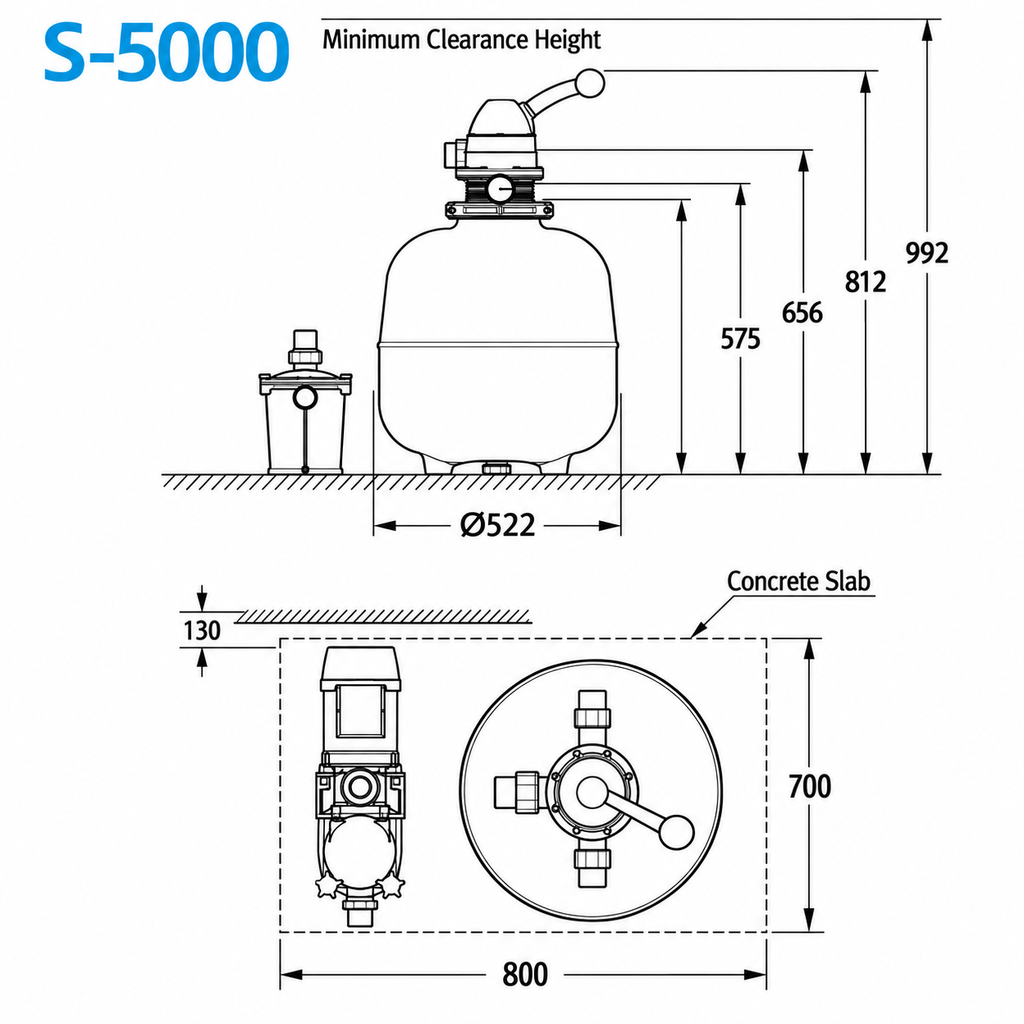

The Poolrite S Series Media Filter range is available in S-5000, S-6000 and S-8000 models, providing maximum flow rates from 13,200 to 27,000 litres per hour. With filter tank diameters ranging from 510mm to 740mm, the range provides scalable filtration capacity for different pool sizes and hydraulic requirements.
| Specification | S-5000 | S-6000 | S-8000 |
|---|---|---|---|
| Filter Tank Diameter | 510 mm (20 in) | 635 mm (25 in) | 740 mm (30 in) |
| Max. Flow Rate | 13,200 L/hr | 18,000 L/hr | 27,000 L/hr |
| Media Weight | 80 kg | 120 kg | 140 kg |
| Media Grade | -1.6 + 0.5 mm | -1.6 + 0.5 mm | -1.6 + 0.5 mm |
| Coarse Media Weight | 10 kg | 40 kg | 60 kg |
| Coarse Media Grade | -3.2 + 1.6 mm | -3.2 + 1.6 mm | -3.2 + 1.6 mm |
Complete with Poolrite V2000 Multiport Valve
A key component of the S Series filtration system is the Poolrite V2000 Multiport Valve.
Developed following several years of Poolrite research and development, the V2000 is designed to provide lower restriction to water flow, reduced operating noise and easy operation, while requiring no routine valve maintenance.
The V2000 gives the operator six essential filtration functions from a single control valve:
| Valve Position | Function |
|---|---|
| Filter | Directs water down through the filter media before returning it to the pool |
| Backwash | Reverses water flow upwards through the media and directs dirty water to waste |
| Rinse | Directs water down through the media and out to waste following backwashing |
| Waste | Bypasses the filter and directs water straight to waste |
| Recirculate | Bypasses the filter and returns water directly to the pool |
| Closed | Prevents water flow through the filter |
This multi-function design simplifies normal filtration, cleaning, water circulation and pool water management through a single valve assembly.
