Skimmer Concrete Standard Throat (White)
Product code: 11090100
Includes GST. Shipping calculated at checkout.
In stock, dispatched from Brisbane
- Designed and made in Brisbane
- Manufacturer's warranty
- Australia-wide delivery
- Local support, Mon–Fri
Overview

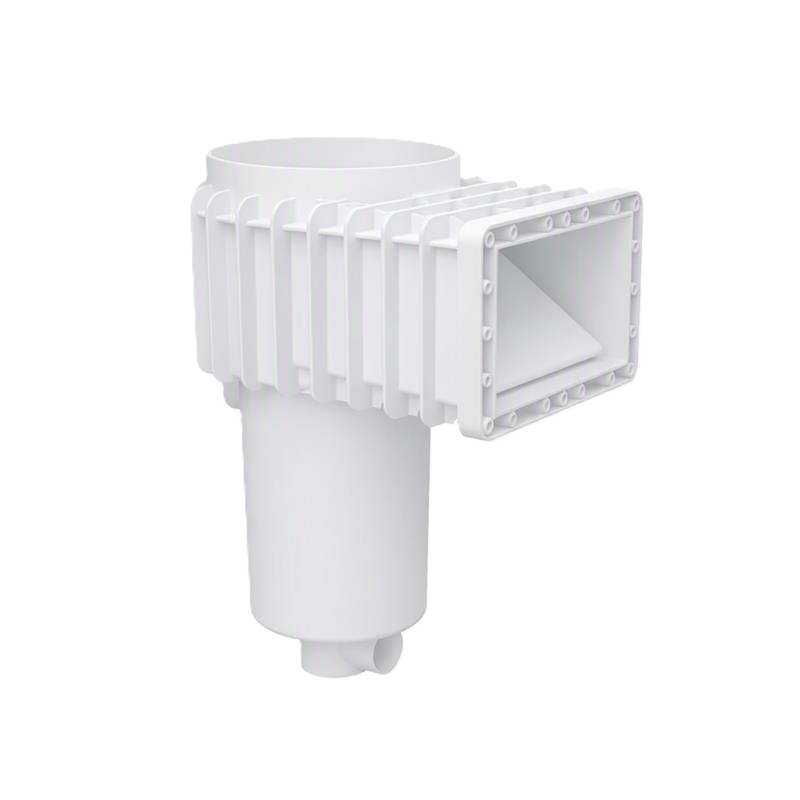

Poolrite innoSkim Skimmer
One-Piece Skimmer for Concrete, Fibreglass and Vinyl Pools
The Poolrite innoSkim is a true one-piece skimmer body, designed with input from pool builders and moulded in Queensland from engineering-grade polymer.
This is the standard throat concrete version in white. The standard throat is 147 mm deep, suiting standard coping and wall widths.
Key Features
- True one-piece skimmer body moulded from engineering-grade polymer
- Oversized deep leaf basket for less cleaning
- Speed-controlled vacuum plate
- 50 mm suction ports
- Main drain (auxiliary) port
- Soft-close weir door
- Auto-level and water-flow ports
- Lockable, child-resistant deck lid options (round or square)
- Tested to AS 1926.3-2010
Finish It Your Way
Choose a round or square innoSkim lockable deck lid in white, grey or beige to suit your paving. Lids open with the innoSkim key, so children can't get into the skimmer.
Installation
- Surround the skimmer with at least 100 mm of properly reinforced structural concrete, poured in one go, with a control joint. Consult a registered engineer.
- Position the skimmer in line with prevailing winds and water movement, and anchor it firmly.
- Support pipework on stable ground and do not lever the pipes after connecting them.
- If the dress ring is not secured to the body, fit an innoSkim extension ring.
- Keep the pool water ⅓ to ½ of the way up the skimmer opening.

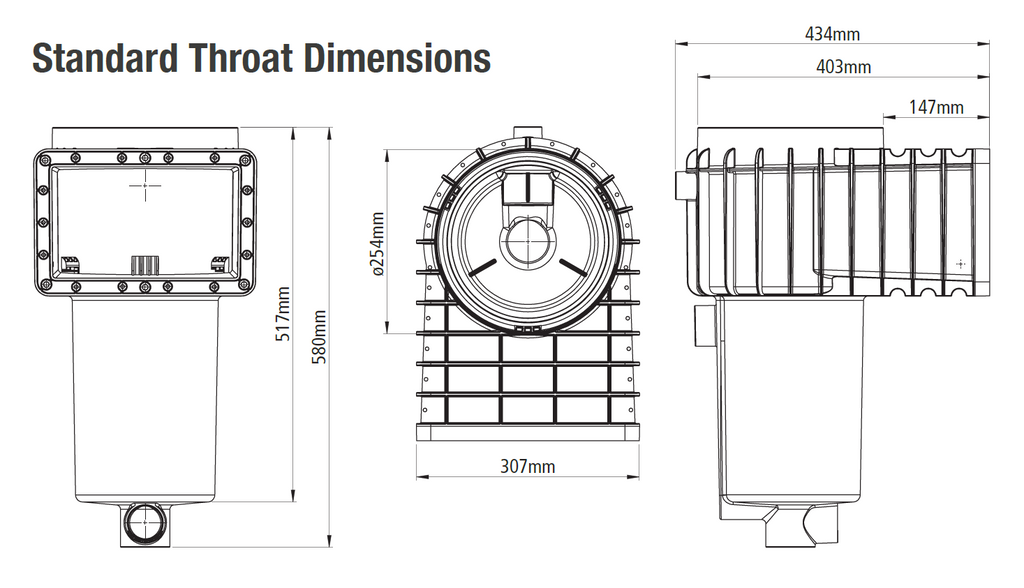

Dimensions
| Body width | 307 mm |
| Body height | 517 mm (580 mm including bottom port) |
| Throat depth | 147 mm |
| Overall depth | 403 mm (434 mm including faceplate) |
| Lid opening | Ø254 mm |
Skimmer body measurements in millimetres.
Safety
Never run the pool with a damaged or missing lid, basket or cover. Use genuine Poolrite parts only, and check skimmer parts regularly for wear.
Need a Hand?
Need help choosing the right skimmer? Find a Poolrite dealer near you, or contact Poolrite on (07) 3155 6531.
Downloads 4
Warranty
Covered by Poolrite's manufacturer's warranty. See the full terms for cover and conditions.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Read the warranty terms · Register your product
