InnoSkim

Skimmer Fibreglass Kit Standard Throat (Grey)

Product code: 11090115

$344.00

Includes GST. Shipping calculated at checkout.

In stock, dispatched from Brisbane

  • Australian owned, Brisbane based
  • Manufacturer's warranty
  • Australia-wide delivery
  • Local support, Mon–Fri

Overview

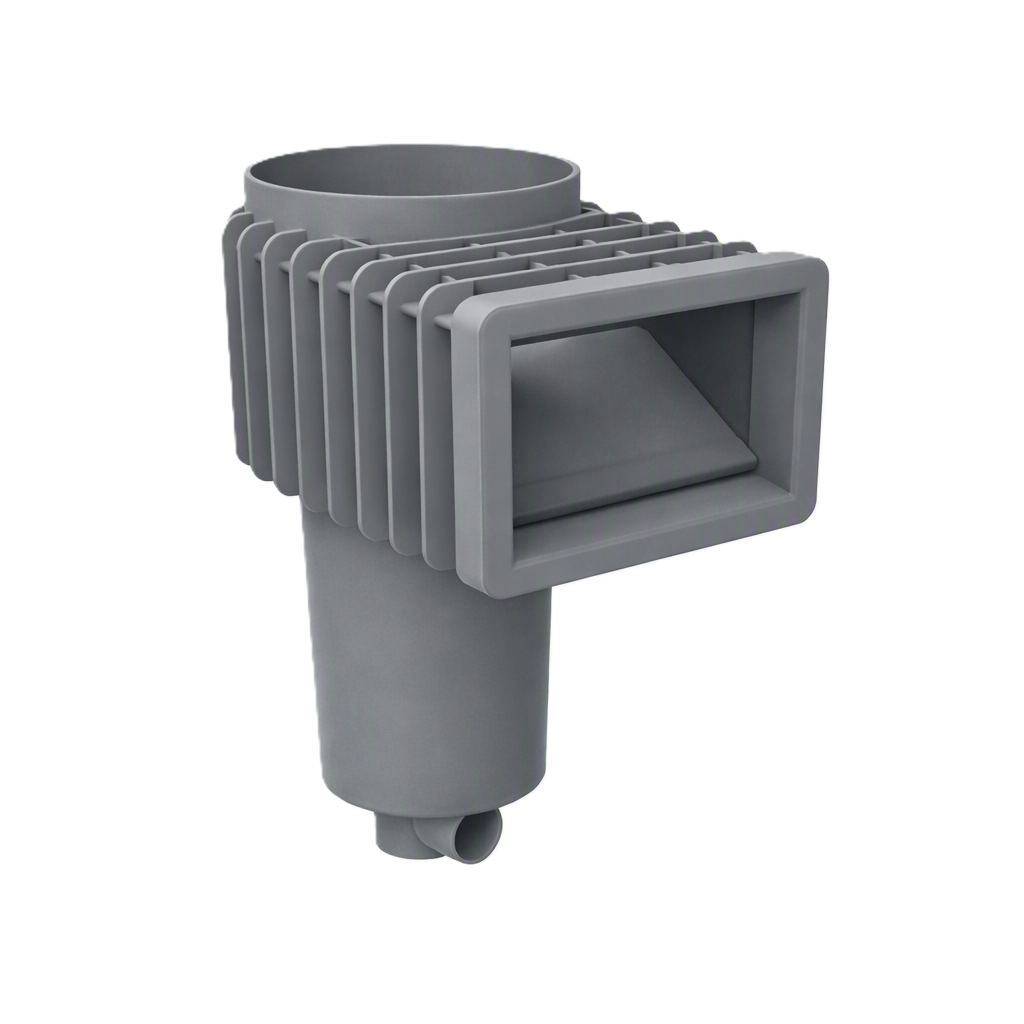

Poolrite innoSkim Skimmer

One-Piece Skimmer for Concrete, Fibreglass and Vinyl Pools

The Poolrite innoSkim is a true one-piece skimmer body, designed with input from pool builders and moulded in Queensland from engineering-grade polymer.

This is the standard throat fibreglass kit version in grey. The standard throat is 147 mm deep, suiting standard coping and wall widths.

Key Features

  • True one-piece skimmer body moulded from engineering-grade polymer
  • Oversized deep leaf basket for less cleaning
  • Supplied with the escutcheon plate fibreglass adaptor kit
  • Speed-controlled vacuum plate
  • 50 mm suction ports
  • Main drain (auxiliary) port
  • Soft-close weir door
  • Auto-level and water-flow ports
  • Lockable, child-resistant deck lid options (round or square)
  • Tested to AS 1926.3-2010
  • Bracing points for fibreglass pool transport and installation

Finish It Your Way

Choose a round or square innoSkim lockable deck lid in white, grey or beige to suit your paving. Lids open with the innoSkim key, so children can't get into the skimmer.

Installation

  • Install the skimmer level, with the top of the mouth at least 75 mm below the coping.
  • Backfill and compact carefully by hand so the body does not distort. Machinery is not recommended.
  • Position the skimmer in line with prevailing winds and water movement, and anchor it firmly.
  • Support pipework on stable ground and do not lever the pipes after connecting them.
  • If the dress ring is not secured to the body, fit an innoSkim extension ring.
  • Keep the pool water ⅓ to ½ of the way up the skimmer opening.

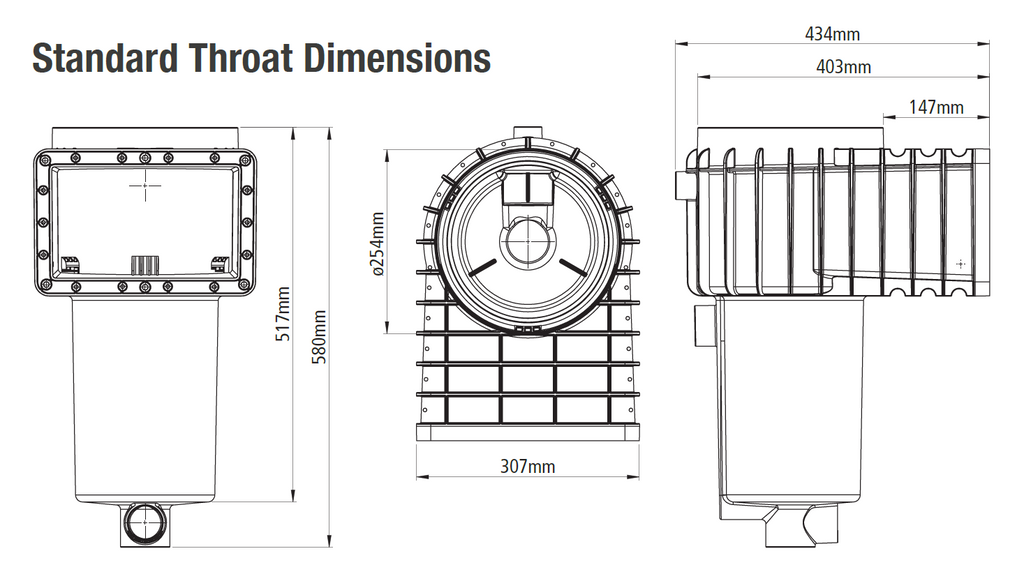

Dimensions

Body width 307 mm
Body height 517 mm (580 mm including bottom port)
Throat depth 147 mm
Overall depth 403 mm (434 mm including faceplate)
Lid opening Ø254 mm

Skimmer body measurements in millimetres.

Safety

Never run the pool with a damaged or missing lid, basket or cover. Use genuine Poolrite parts only, and check skimmer parts regularly for wear.

Need a Hand?

Need help choosing the right skimmer? Find a Poolrite dealer near you, or contact Poolrite on (07) 3155 6531.

Warranty

Covered by Poolrite's manufacturer's warranty. See the full terms for cover and conditions.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Read the warranty terms · Register your product

Delivery

  • We deliver Australia-wide. Most in-stock orders leave our Brisbane warehouse within 1–2 business days.
  • Smaller items travel by Australia Post. Pumps, filters and bulky items go by StarTrack road freight.
  • You'll get a tracking number by email when your order ships.
  • Shipping is calculated at checkout. Please use a street address: we can't deliver to PO Boxes or Parcel Lockers.

Shipping policy · Track your order · Returns

Safety

  • Wear gloves, eye protection and a dust mask when handling.
  • Pour gently to keep dust down, and rinse any spills away with water.

Safety Data Sheets
